HIKVISION TVI Technology

hikvision-logo

HD-TVI TURBO HD DVR Hikvision DS-7204HGHI-SH/A

(4ch, [email protected], H.264, HDMI, VGA)

Available models:

  • DS-7204HGHI-SH
  • DS-7208HGHI-SH
  • DS-7216HGHI-SH

Features:

  • 1080p recording resolution at 12 fps, 720p and lower resolutions at 25 fps
  • Support for 8 HD-TVI or CVBS cameras and 2 IP camers (Hikvision or others by Onvif, max. 1080p)
  • Support for IE, Google Chrome, Opera, Safari
  • Channel 0 – possibility to monitor all cameras with minimum demand for network bandwidth
  • Parallel operation of HDMI, VGA and CVBS outputs
  • HDMI/ VGA modes up to 1920 x 1080 pixels
  • Searching recordings by alarm events
  • VCA image analysis function
  • Digital zooming during live monitoring and playback
  • Synchronous playback from 8 channels
  • Support for IPv4, IPv6,
  • Monitoring the statuses of LAN, cameras, hard drives
web-DS-7200HGHI-SH

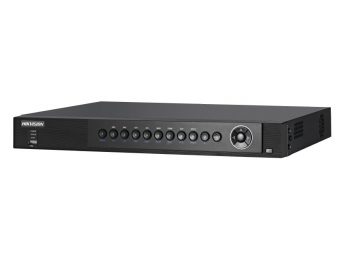

Turbo HD DVR DS-7204/7208/7216HQHI-SH


Available models:

  • DS-7204HQHI-SH
  • DS-7208HQHI-SH
  • DS-7216HQHI-SH

Features:

  • H.264 & Dual-stream video compression
  • Support HD-TVI/analog/IP camera triple hybrid
  • Support both HD-TVI and analog cameras with
adaptive access
  • Full [email protected] resolution real-time recording
  • HDMI and VGA output at up to 1920×1080P
resolution
  • Long transmission distance over coax cable
  • Support up to 16-ch synchronous playback

Hikvision DS-2CE56D1T-IT3 HD1080P Turbo HD External IR Turret Dome Camera

The Hikvision DS-2CE56D1T-IT3 is a HD1080P Turbo HD External IR Turret Dome Camera with 3.6mm Fixed Lens.

Hikvision’s revolutionary Turbo HD technology brings with it a huge breakthrough in the evolution of analogue transmissions, opening up a whole new range of possibilities over coaxial cabling. the DS-2CE56D1T-IT3 provides a 2MP high performance CMOS, capable of HD1080P.

Features:

  • H.264 & Dual-stream video compression
  • Support HD-TVI/analog/IP camera triple hybrid
  • Support both HD-TVI and analog cameras with
adaptive access
  • Full [email protected] resolution real-time recording
  • HDMI and VGA output at up to 1920×1080P
resolution
  • Long transmission distance over coax cable
  • Support up to 16-ch synchronous playback

Hikvision DS-2CE56D1T-IT3 HD1080P Turbo HD External IR Bullet Dome Camera


The Hikvision DS-2CE56D1T-IT3 is a HD1080P Turbo HD External IR Bullet Dome Camera with 3.6mm Fixed Lens.

Hikvision’s revolutionary Turbo HD technology brings with it a huge breakthrough in the evolution of analogue transmissions, opening up a whole new range of possibilities over coaxial cabling. the DS-2CE56D1T-IT3 provides a 2MP high performance CMOS, capable of HD1080P.

Features:

  • HD1080P
  • External Camera
  • 2MP CMOS Image Sensor
  • 1/2.7″ CMOS
  • Max 40m IR
  • 2 pcs EXIR LED
  • EXIR
  • Adopt HDTVI Technology
  • 3.6mm Lens
  • OSD menu, Digital WDR, DNR, Smart IR
  • Day/Night: ICR
  • Up the Coax(via coaxial cable)
  • 12 VDC
  • IP66

DS-2CE16D1T-(A)IR3Z

(HD1080P Motorized Vari-focal IR Bullet Camera

HD-TVI camera HIKVISION DS-2CE16D1T-AIR3Z: 2 mega pixel / Full HD 1080P / 1920×1080 px

Colorful water-resistant camera with IR illumination up to 40 meters, 1 / 2.7 “Progressive Scan CMOS sensor, minimum illumination of 0 lux – see in total darkness, mechanical IR filter, motorized varifocal lens 2.8-12 mm with viewing angle of 114 to 35 degrees – managed by coaxial cable, Video Frame Rate: 1080p @ 25fps, Analog HD output, BLC, AWB, AGC, AES, Smart IR Led, 3D-DNR noise filter, IP66, DC12V – 6W, stand and canopy, aluminum housing, for outdoor installation. OSD menu.

The camera has a motorized varifocal lens, which is managed by the coaxial cable. There is no need for additional wiring.

Features:

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • 2.8 – 12mm motorized vari-focal lens
  • True Day/Night, Smart IR
  • Up to 40m IR distance
  • IP66 weatherproof
  • OSD menu
  • 24V AC/ 12V DC (-A)
  • Up the Coax(HIKVISION-C protocol)

DS-2CE56D1T-IR3Z

HD1080P Motorized Vari-focal IR Turret Camera

Features:

  • TVI technology
  • Full HD1080P
  • High Resolution 1/3″ Progressive Scan CMOS sensor
  • Effective Pixel 1930(H)*1088(V)
  • True day / night IR cut filter with auto switch ICR
  • Min. Illumination: 0.01 [email protected]
  • Lens 2.8-12mm motorized Lens.
  • Smart IR EXIR 40m IR Range
  • Wide Dynamic Range 52 dB
  • Voltage 12 VDC
  • Power Consumption 5W with IR
  • Operating temperature range (-40°~60°)
  • Weather Proof IP66
  • Dimensions: Φ130.54 × 102.4mm
  • Weight 710g

 DS-2CE10DFT-F28

2 MP Full Time Color Camera

Features:

  • 2 MP, 1920 × 1080 resolution
  • 24-hour color image
  • 2.8 mm fixed focal lens
  • Up to 20 m white light distance
  • OSD menu, 3D DNR, true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

 DS-7100HQHI-K1 SERIES

 TURBO HD DVR

Features:

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  •  Audio via coaxial cable
  •  Up to 6/12/24-ch IP camera inputs (up to 6 MP)
  •  Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
  •  Up to 6 TB capacity per HDD

 DS-2AE4123TI/4223TI-D

 HD720P/1080P Turbo IR PTZ Dome Camera

Key Features

  • 1/3″ Progressive Scan CMOS
  • 1280×720/1920×1080
  • 23X Optical Zoom
  • DWDR
  • Up to 100m IR distance
  • 3D intelligent positioning function
  • Support Turbo HD and BNC output

DS-7200HQHI-K2 SERIES

TURBO HD DVR

Features and Functions

  • Video Input and Transmission
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Up to 2-ch 4 MP IP cameras input
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Up to 3 MP resolution for recording
  • Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p

Video Output

  • Simultaneous HDMI/VGA output
  • HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K2
  • Separate CVBS output

Storage and Playback

  • 2 SATA interfaces (up to 6 TB capacity per HDD)
  • 8/16-ch synchronous playback
  • Smart search for efficient playback
  • Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • DS-7208HQHI-K2 support 2-ch line crossing detection and intrusion detection;
  • DS-7216HQHI-K2 supports 2-ch line
    crossing detection and intrusion detection, and 1-ch sudden scene change detection
  • VQD (Video Quality Diagnostics)
  • Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • 1 RJ45 10M/100M Ethernet network interface for DS-7208HQHI-K2, and 1 RJ45
  • 10M/100M/1000M Ethernet network
  • interface for DS-7216HQHI-K2
  • Output bandwidth limit configurable

DS-2CE72HFT-F28

 5 MP Full Time Color Camera

Features and Functions

● 5 MP, 2560 × 1944 resolution
● 24-hour color image
● 130 dB true WDR, 3D DNR
● 2.8 mm fixed focal lens
● Smart Light, up to 20 m white light distance
● 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
● IP67

DS-2CE16H0T-IT3F

5 MP Bullet Camera

Features and Functions

  • 5 MP high performance COMS
  • 2560 × 1944 resolution
  • 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  •  EXIR 2.0, smart IR, up to 40 m IR distance
  • OSD menu, 2D DNR, DWDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  •  IP67
  • Up the coax (HIKVISION-C)

DS-2CE56H0T-IT3F

5 MP Turret Camera

Features and Functions

  • 5 MP high performance COMS
  • 2560 × 1944 resolution
  • 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • EXIR 2.0, smart IR, up to 40 m IR distance
  • OSD menu, 2D DNR, DWDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  •  IP67
  • Up the coax (HIKVISION-C)

DS-2CE12HFT-F28

 5 MP Full Time Color Camera

Features and Functions

  • 5 MP, 2560 × 1944 resolution
  • 24-hour color image
  •  130 dB true WDR, 3D DNR
  •  2.8 mm fixed focal lens
  •  Smart Light, up to 40 m white light distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

DS-2CE19H8T-(A)IT3ZF

5 MP Bullet Camera

Features and Functions

  • 5 MP high performance CMOS
  • Auto focus
  • 2560 × 1944 resolution
  •  2.7 mm to 13.5 mm motorized vari-focal lens
  •  EXIR 2.0, smart IR, up to 80 m IR distance
  •  OSD menu, 3D DNR, 130 dB true WDR
  •  4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  •  IP67
  •  Up the coax (HIKVISION-C)

DS-2CE72HFT-F

5 MP Full Time Color Camera

Features and Functions

  • 5 MP, 2560 × 1944 resolution
  • 24-hour color image
  • 130 dB true WDR, 3D DNR
  • 3.6 mm, 6 mm fixed focal lens
  • Smart Light, up to 20 m white light distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

DS-7200HUHI-K2 SERIES

TURBO HD DVR

Features and Functions

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 8/16/32-ch IP camera inputs (up to 8 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
    transmission
  • Up to 10 TB capacity per HDD

DS-1280ZJ-PT6

Junction Box for Dome Camera

Features and Functions

  • Aluminum alloy material with surface spray treatment
  • Side inlet and bottom inlet
  • The bottom waterproof cover and the side gland nut are interchangeable
  • Waterproof design

DS-1280ZJ-S

Junction Box for Dome Camera

Features

  • Aluminum alloy material with surface spray
    treatment
  • Waterproof design
  • Cable hole on bracket makes the feature
    better

DS-1280ZJ-PT6

Junction Box for Dome Camera

Features and Functions

  • Aluminum alloy material with surface spray treatment
  • Side inlet and bottom inlet
  • The bottom waterproof cover and the side gland nut are interchangeable
  • Waterproof design

DS-1280ZJ-XS

Junction Box for Dome(Bullet) Camera

Features

  • Aluminum alloy material with surface spray
    treatment
  • Cable hole on bracket makes the feature
    better

DS-D5019QE-B 18.5” Monitor

Key Features

  • LED backlit technology with HD 1366 x 768
  • Wide view angle: 90° (H)/65° (V)
  • Inputs: VGA,HDMI
  • 3D comb filter, 3D De-interlace
  • 3D noise reduction
  • VESA stand bracket
  • High reliability and stability, 24/7 operation
  • Green energy: Enter standby mode while no signal input
